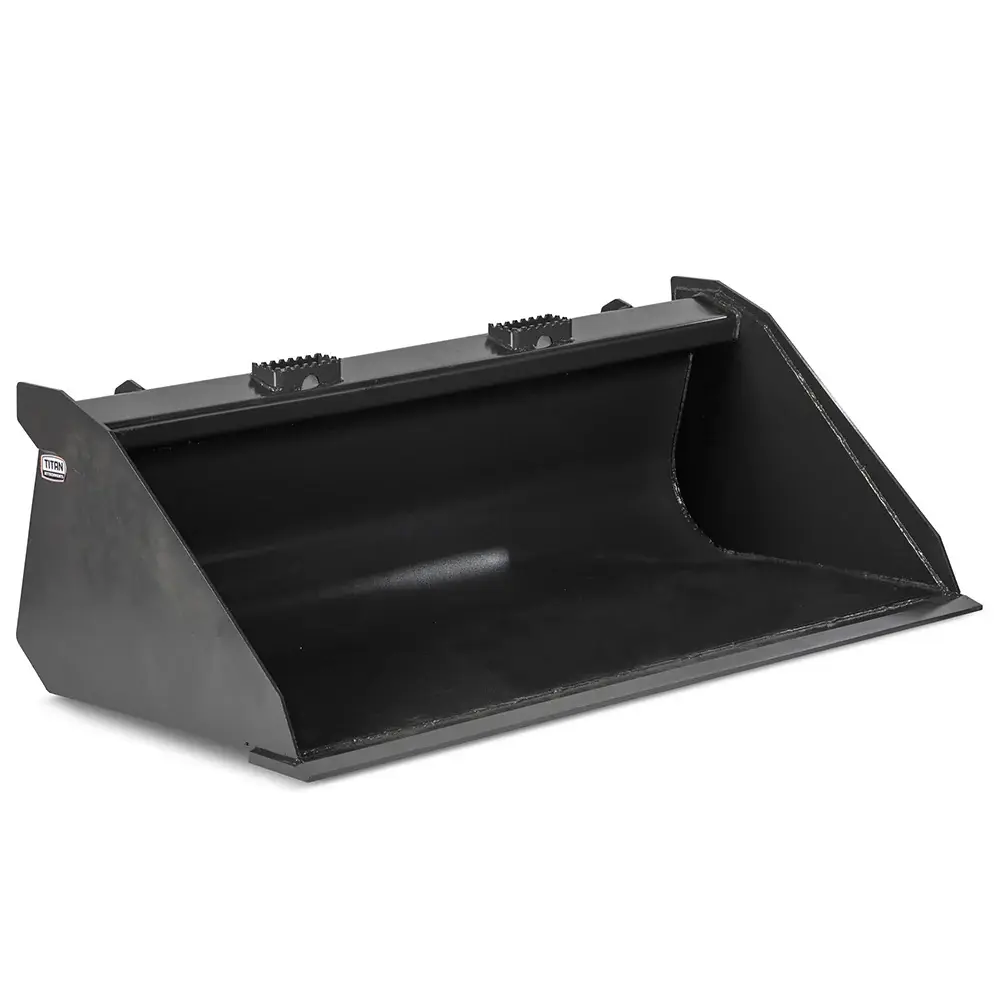

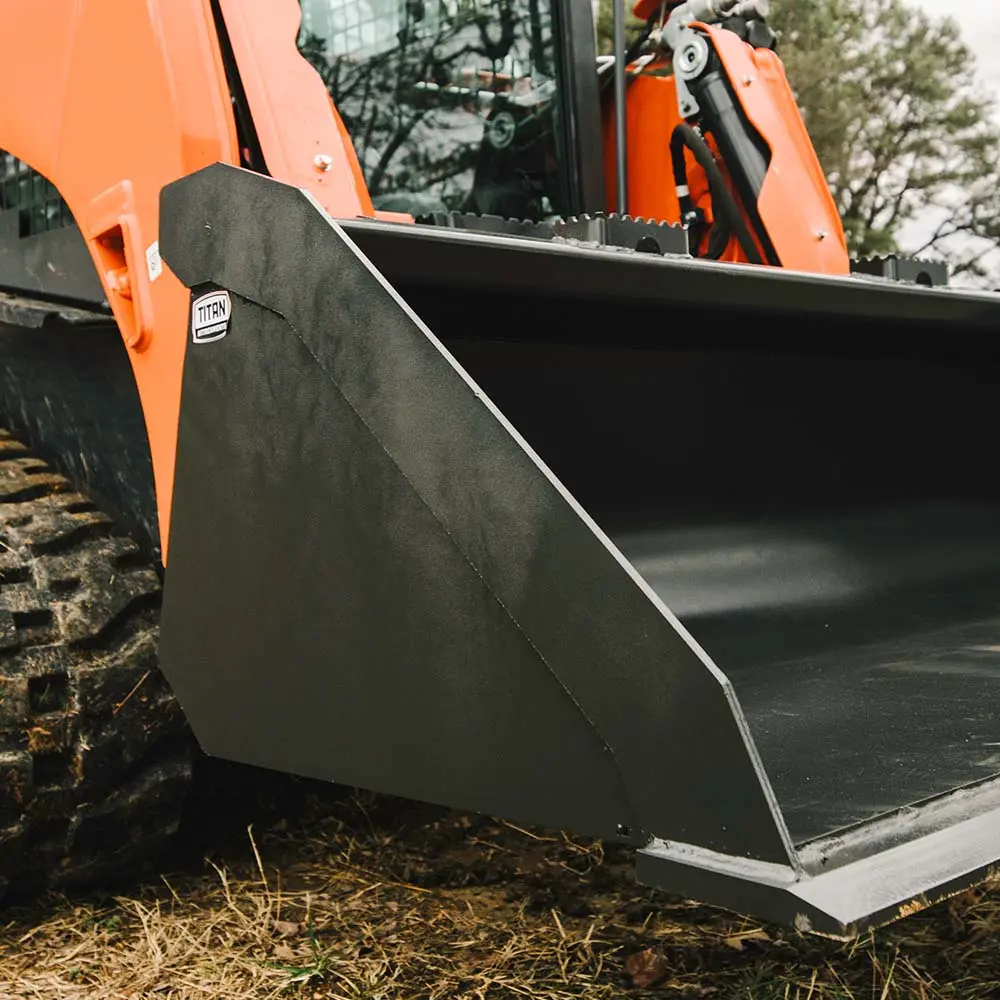

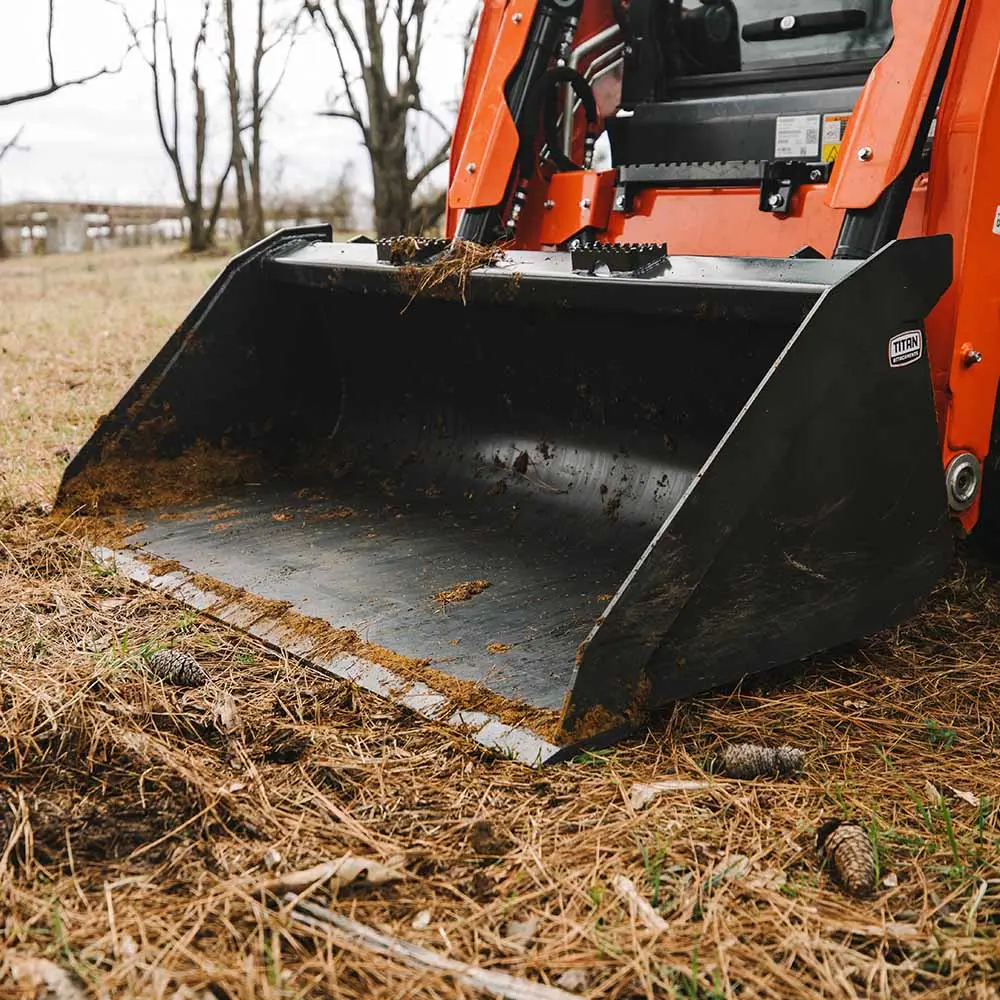

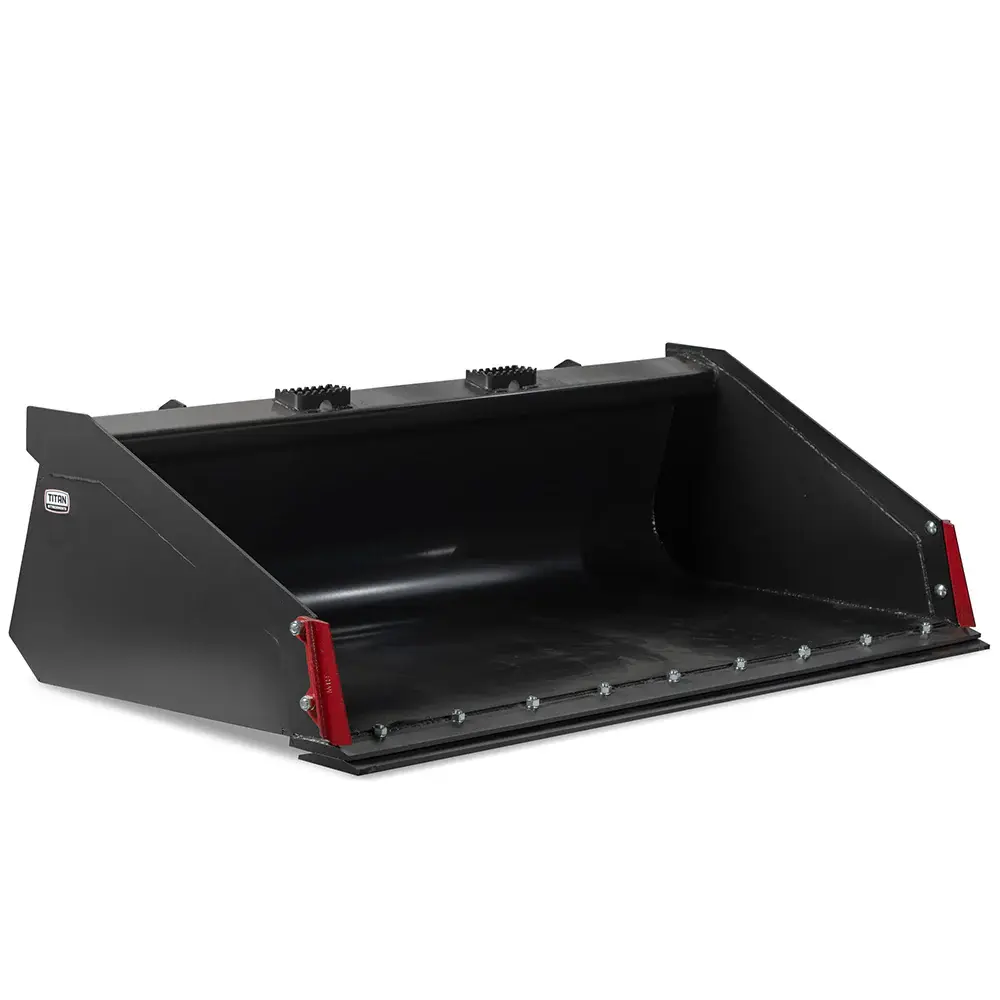

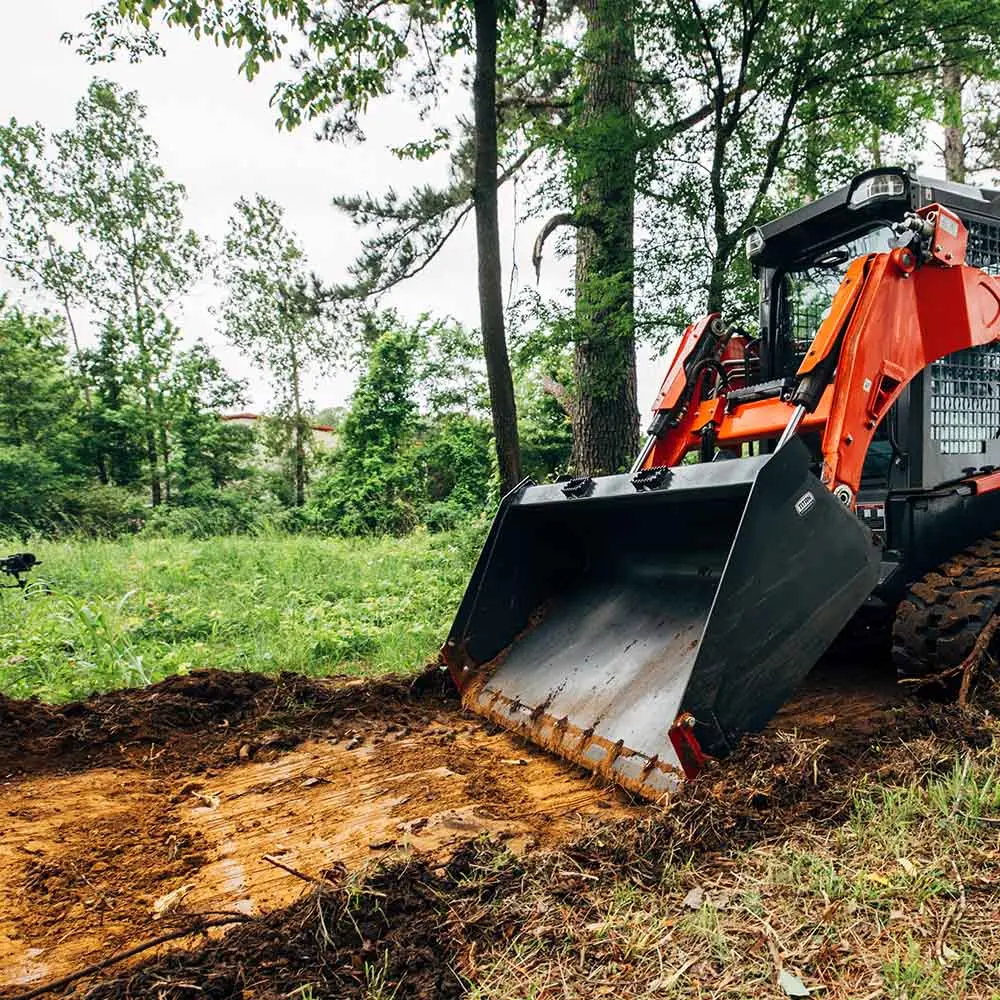

TITAN HD GRADE 50 LOW PROFILE 72" BUCKET

This commercial-grade dirt bucket is constructed from heavy-duty Grade 50 steel with thick sidewalls, under-bucket wear strips, serrated footsteps, side cutters, and a replaceable bolt-on cutting edge. Designed with a low-profile and long bottom, it allows for better visibility of the leading edge from inside your cab for precision leveling and grading. Load up to 20-23.5 cu. ft of gravel, soil, and other material. The rolled-back design increases rigidity, rollback angle, and allows material to flow more smoothly in and out of the bucket. Equipped with an SSQA connection, the Pro Series dirt bucket fits any machine with a Universal Skid Steer Quick Tach mounting system.

Specifications

Overall Height

21-in.

Overall Width

75-in.

Overall Depth

40-in.

Inside Height

18-in.

Inside Width

72-in.

Inside Depth

35-in.

Cutting Edge Thickness

3/4-in.

Shell Thickness

1/4-in.

Side Wall Thickness

1/4-in

Material

Finish

Powder-Coated Charcoal

Material

Grade 50 Steel

Weight

Fill Capacity

20 Cu Ft.

Product Weight

647 lb.
