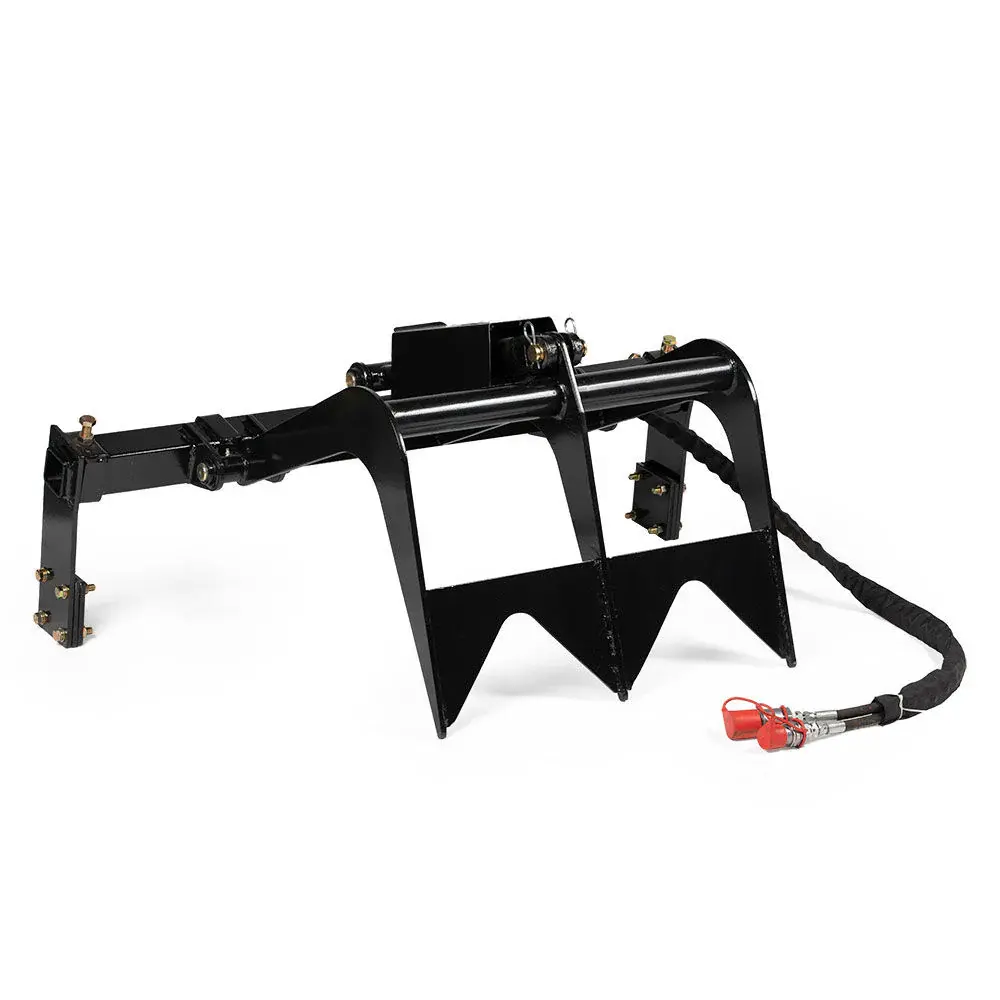

TITAN 48" - 60" Bolt-on Grapple Attachment
Details
- Convert your bucket to a grapple bucket with this easy DIY kit
- Adjustable to fit your bucket, no welding or cutting required

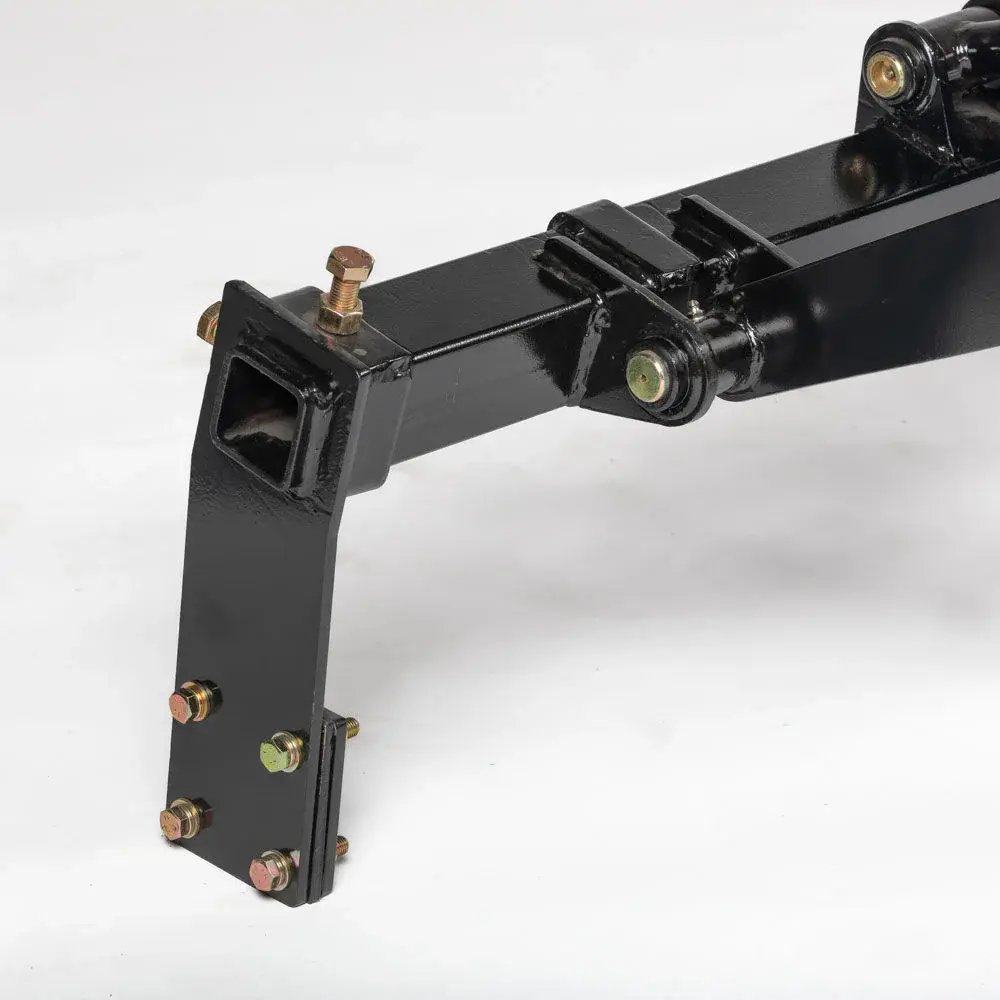

- Simple 4 bolt pattern with a template, hardware, and backing plate included
- Single grapple centers on your bucket to hold the entire load
- Single piece top bar provides complete support and rigidity to the grapple

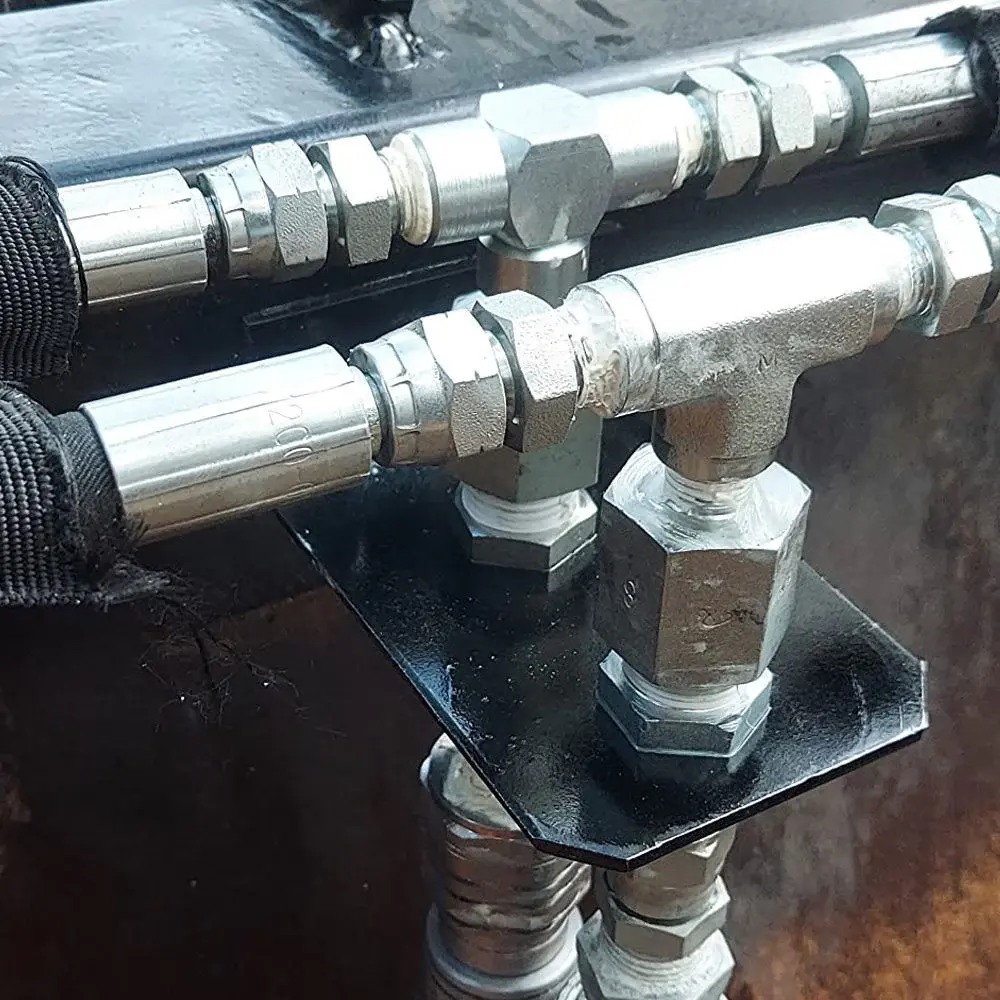

- Hoses and flat-faced couplers included

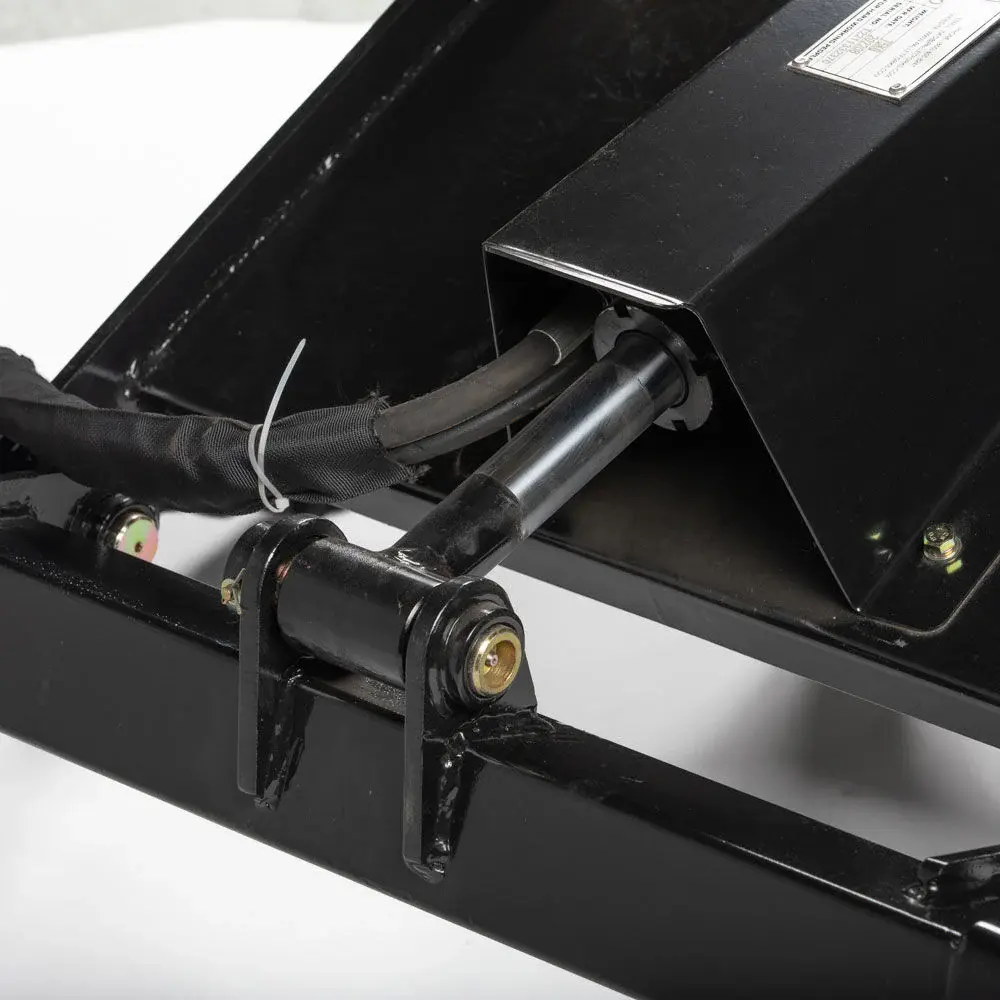

- 3,000 PSI cylinders with cylinder shields to protect from debris
Specifications

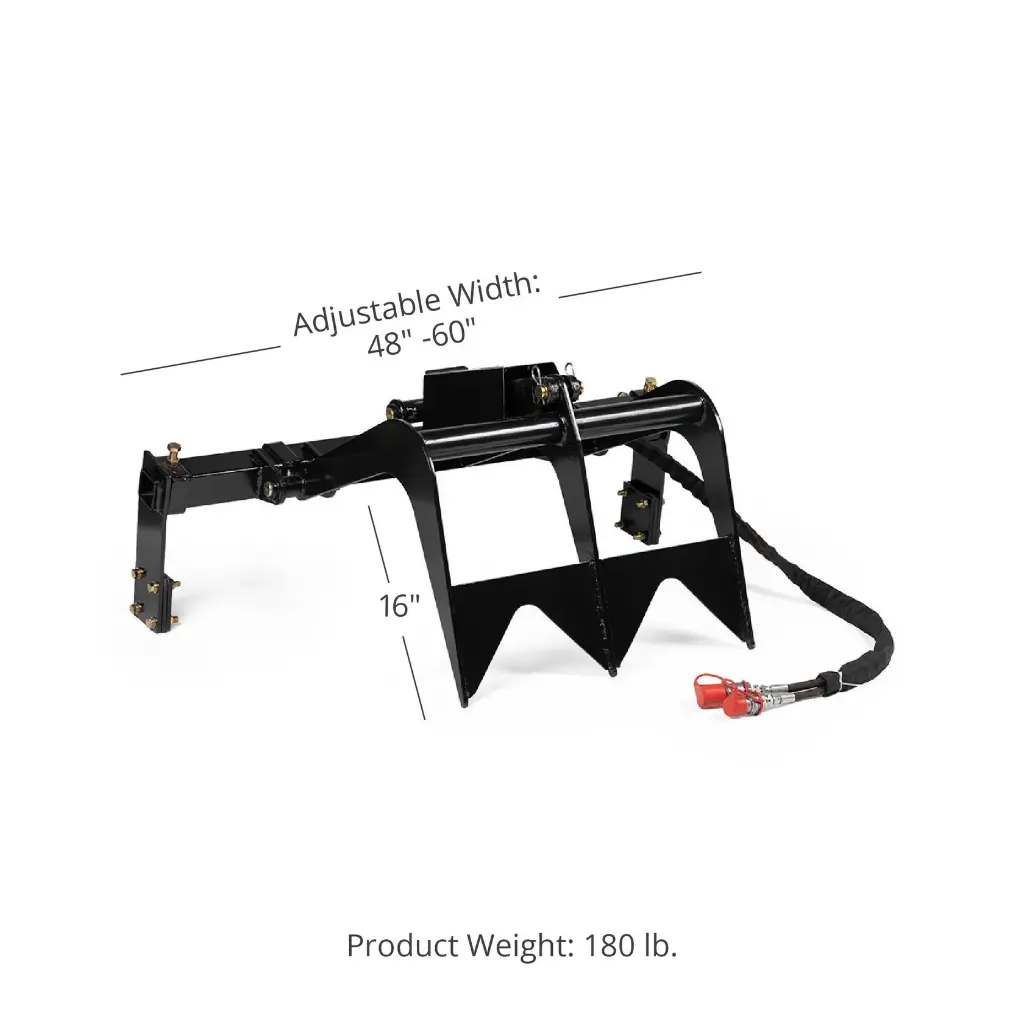

Adjustable Width
48-in. - 60-in.
Grapple Opening
30-in.

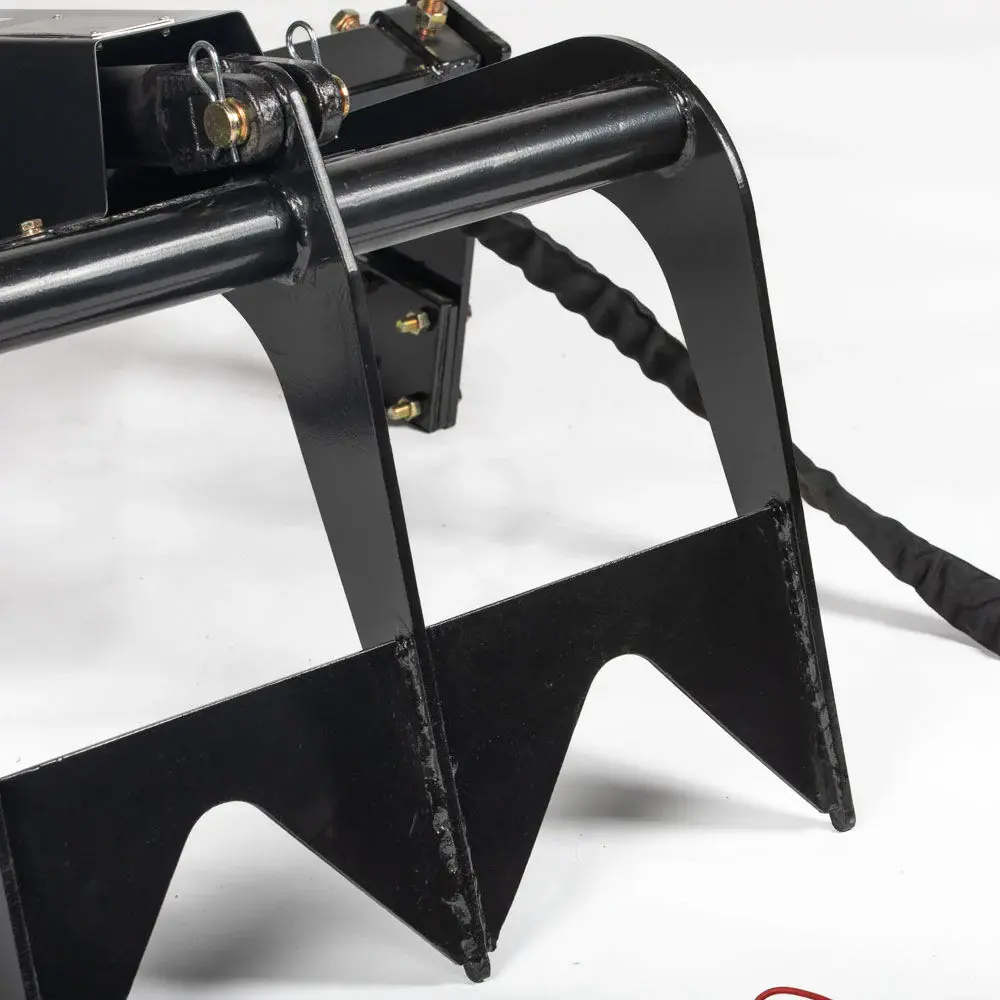

Grapple Teeth Length
16-in.
Grapple Teeth Thickness
0.5-in.
Cylinder Stroke
6.5-in.
Cylinder Rating
3,000 PSI
Finish
Powder-Coated Black
Material
Steel
Product Weight
180 lb.
