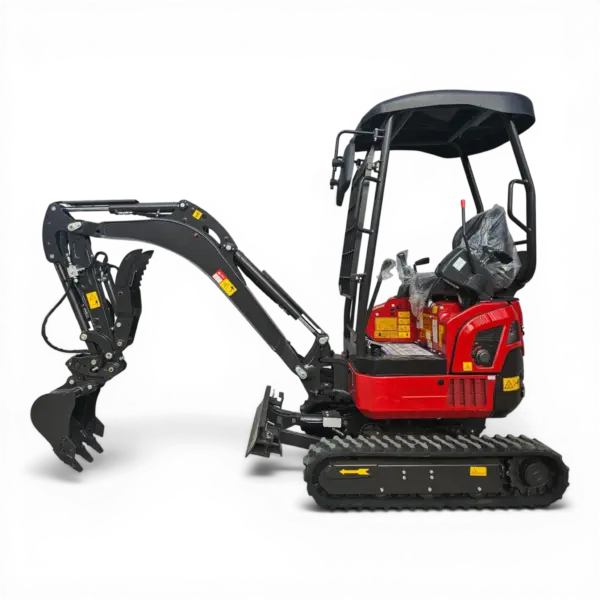

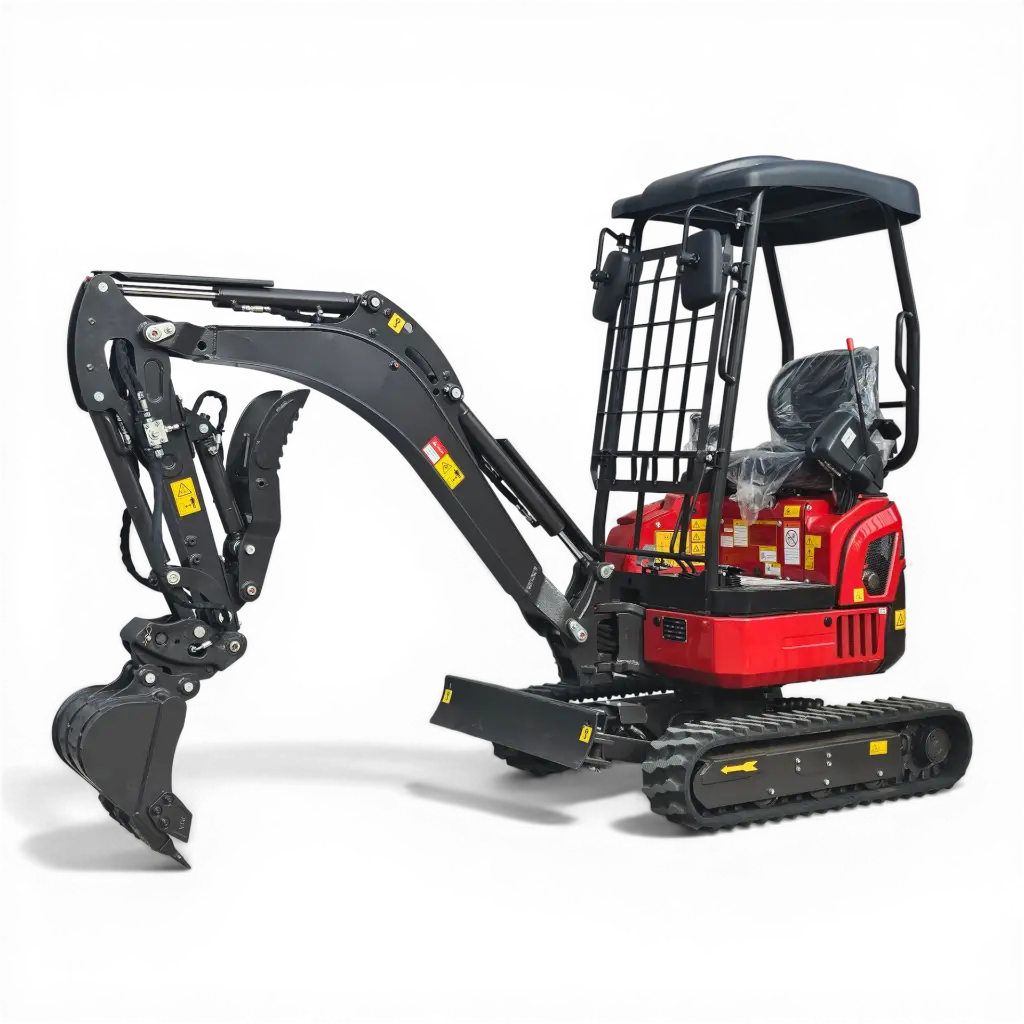

RHINOCEROS RH18 MINI EXCAVATOR
Power

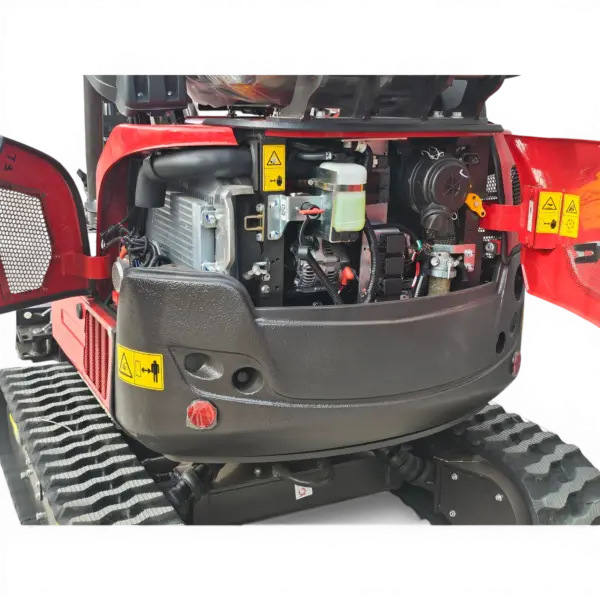

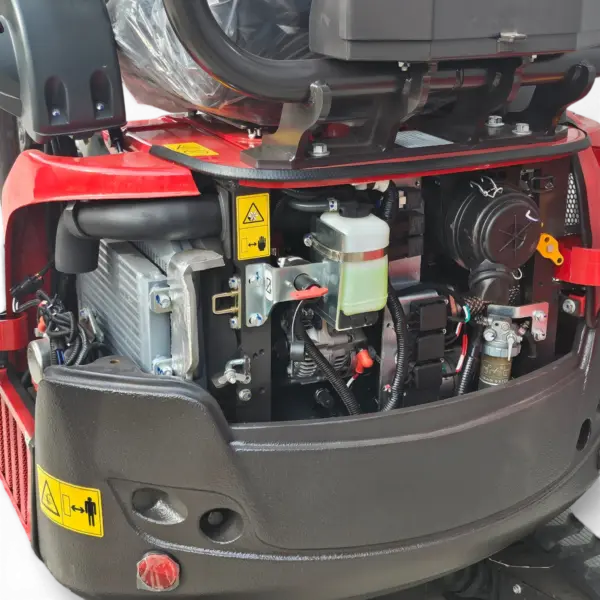

• 15.82 hp Kubota D902 engine delivering reliable performance for demanding excavation tasks
• High-efficiency piston pump with 10.46 gal/min flow rate for smooth, responsive hydraulic operation
• 51.3 N.m maximum torque providing powerful digging force and load handling capability
Operating Specs
• Maximum digging depth of 86.77 inches with reach up to 145.98 inches for versatile job site applications
• Compact 3,880 lbs operating weight with 0.95 cu ft bucket capacity for precision work in confined spaces
• Two-speed drive motor with travel speeds up to 3.0 km/h and 30% maximum gradeability on challenging terrain
Features

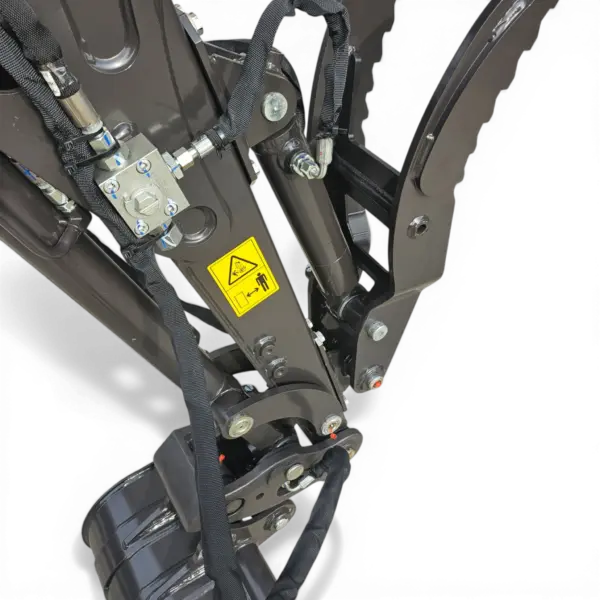

• Hydraulic quick hitch with ISO/SAE pattern compatibility for rapid attachment changes and operational flexibility

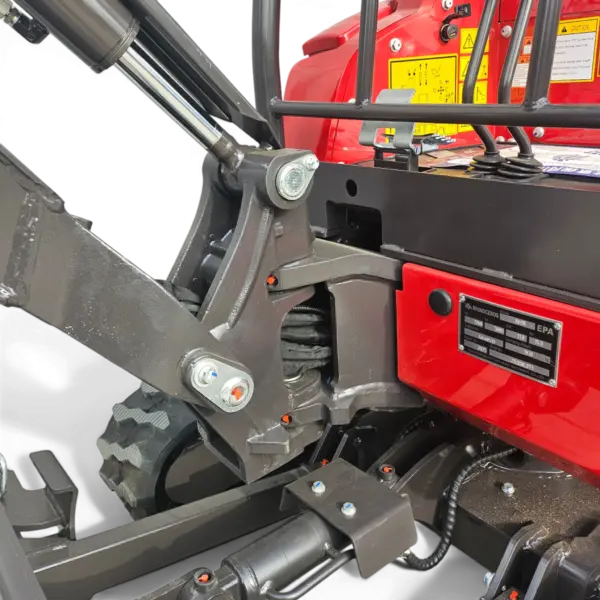

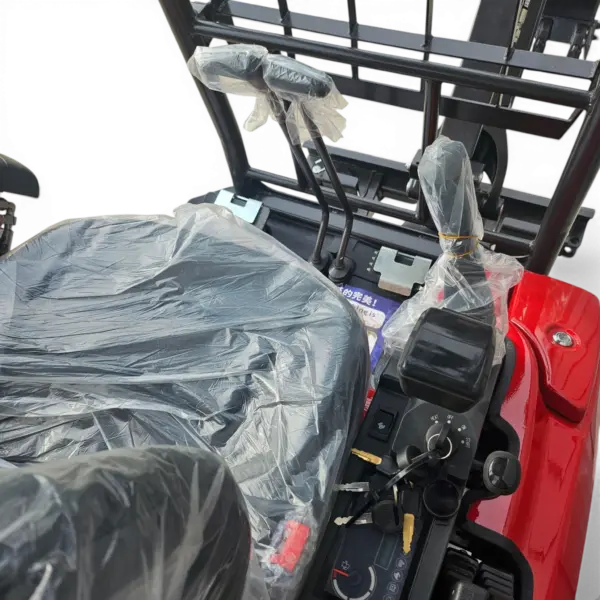

• Pilot controls and swing boom design for enhanced precision, comfort, and extended working range
• Rubber track material with 56.97-inch track length delivering excellent traction and minimal ground disturbance
Rhinoceros Equipment is a global manufacturer of compact construction machinery, with a strong presence in both China and the United States, offering a wide range of excavators, loaders, dumpers, and specialized equipment.
Chinese Rhinoceros (Rhinoceros Equipment Co., Ltd.)
Founded: 1995 in Liaocheng City, Shandong Province, China www.rhinocerosequipment.com.
Specialization: High-quality compact construction machinery, including wheel excavators, mini crawler excavators, mini track loaders, dumpers, loaders, electric machinery, and telehandlers www.rhinocerosequipment.com.
Manufacturing: 80,000 sq. m. factory, over 1,000 employees, 70 R&D engineers, advanced TRUMPF laser cutting and robotic welding systems www.rhinocerosequipment.com.
Standards: Products undergo strict ISO and CE testing www.rhinocerosequipment.com.
Global Reach: Serves over 100 countries, with annual exports of ~20,000 units www.rhinocerosequipment.com.
Innovation: Showcased new product lines at major events like CONEXPO (Las Vegas) and Bauma (Munich) www.rhinocerosequipment.com.
- Brands: RHINOCEROS and XINIU, recognized for durability, reliability, and innovation

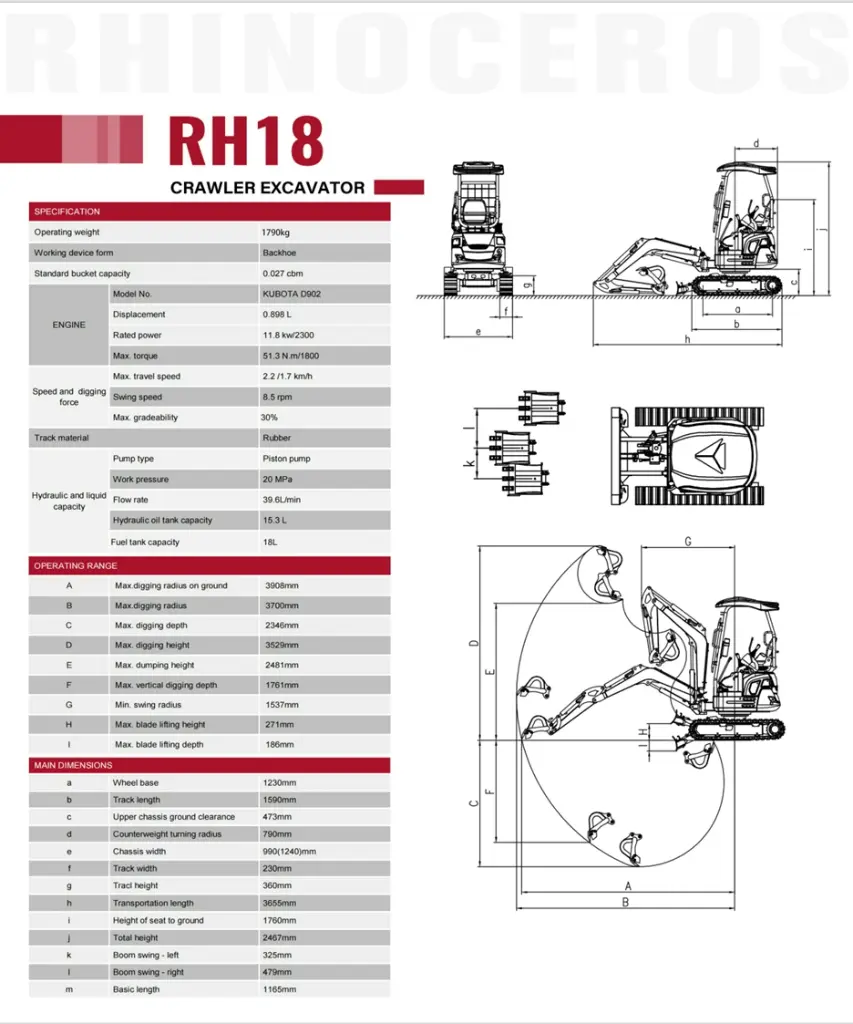

| Wheel base: 4 ft 0.4 in (1,230 mm) | |
| b | Track length: 5 ft 2.6 in (1,590 mm) |
| c | Upper chassis ground clearance: 18.6 in (473 mm) |
| d | Counterweight turning radius: 2 ft 7.1 in (790 mm) |
| e | Chassis width: 3 ft 3 in / 4 ft 0.8 in (990/1,240 mm) |
| f | Track width: 9.1 in (230 mm) |
| g | Track height: 14.2 in (360 mm) |
| h | Transportation length: 12 ft 0.8 in (3,655 mm) |
| i | Height of seat to ground: 5 ft 9.3 in (1,760 mm) |
| j | Total height: 8 ft 1 in (2,467 mm) |
| k | Boom swing-left: 12.8 in (325 mm) |
| l | Boom swing-right: 18.9 in (479 mm) |
| m | Basic length: 3 ft 10.9 in (1,165 mm) |
| Operating weight | 3,946 lbs (1,790 kg) |
| Standard bucket capacity | 0.95 cu ft (0.027 m³) |
| Engine displacement | 0.24 gal (0.898 L) |
| Hydraulic oil tank capacity | 4.04 gal (15.3 L) |
| Fuel tank capacity | 4.76 gal (18 L) |
| A | Max. digging radius on ground: 12 ft 9 in (3,908 mm) |
| B | Max. digging radius: 12 ft 2 in (3,700 mm) |
| C | Max. digging depth: 7 ft 8 in (2,346 mm) |
| D | Max. digging height: 11 ft 7 in (3,529 mm) |
| E | Max. dumping height: 8 ft 1 in (2,481 mm) |
| F | Max. vertical digging depth: 5 ft 9 in (1,761 mm) |
| G | Min. swing radius: 5 ft 0.5 in (1,537 mm) |
| H | Max. blade lifting height: 10.7 in (271 mm) |
| Max. blade lifting depth | 7.3 in (186 mm) |
| Model No. | KUBOTA D902 |
| Displacement | 0.24 gal (0.898 L) |
| Rated power | 15.8 hp (11.8 kW) at 2,300 rpm |
| Max. torque | 37.8 lb-ft (51.3 N·m) at 1,800 rpm |
| Engine model | KUBOTA D902 |
| Displacement | 0.24 gal (0.898 L) |
| Rated power | 15.8 hp (11.8 kW) at 2,300 rpm |
| Max. torque | 37.8 lb-ft (51.3 N·m) at 1,800 rpm |
| Max. travel speed | 1.37/1.06 mph (2.2/1.7 km/h) |
| Swing speed | 8.5 rpm |
| Max. gradeability | 30% |
| Work pressure | 2,900 psi (20 MPa) |
| Flow rate | 10.5 gal/min (39.6 L/min) |
| Standard bucket capacity | 0.95 cu ft (0.027 m³) |
| Max. digging radius on ground | 12 ft 9 in (3,908 mm) |
| Max. digging radius | 12 ft 2 in (3,700 mm) |
| Max. digging depth | 7 ft 8 in (2,346 mm) |
| Max. vertical digging depth | 5 ft 9 in (1,761 mm) |
| Max. digging height | 11 ft 7 in (3,529 mm) |
| Max. dumping height | 8 ft 1 in (2,481 mm) |
| Min. swing radius | 5 ft 0.5 in (1,537 mm) |
| Max. blade lifting height | 10.7 in (271 mm) |
| Max. blade lifting depth | 7.3 in (186 mm) |
| Pump type | Piston pump |
| Pump (manufacturer) | TAIFENG |
| Valve | TAIFENG |
| Swing motor | EATON |
| Traveling motor | EDDIE |
| Cylinder | SUQINGGE |
| Work pressure | 2,900 psi (20 MPa) |
| Flow rate | 10.5 gal/min (39.6 L/min) |
| Hydraulic oil tank capacity | 4.04 gal (15.3 L) |
